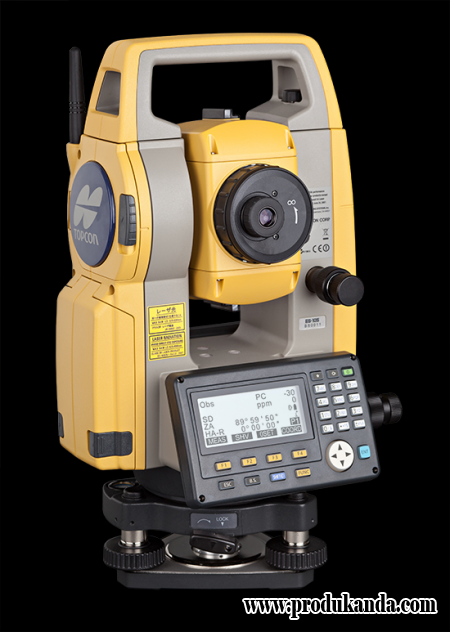

A NEW Classic

• Fast & Powerful Reflectorless EDM
• LongLink Data Communication^*
• Advanced Angle Accuracy
• The Longest Battery Life - 36 Hours!
• Rugged and User-friendly Design

Fast and Powerful Reflectorless EDM

• Fast and accurate pinpointing with phase shift technology.
• Fast distance measurement of 0.9s regardless of object.
• Minimum reflectorless measurment distance - just 30cm.
• Improved collimation with super-bright laser pointer.
• Smaller EDM beam spot size for minimal distance measuring error.
• Dependable measurement even at shallow incidence angles.
• Ensures accurate reflective sheet distance measurement.

The ultra-narrow EDM beam can precisely measure walls, corners, manholes on the surface, even chain-link fences and tree branches.

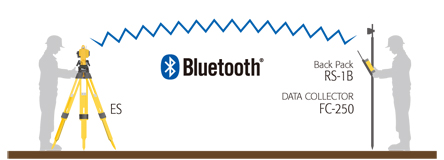

LongLink Data Communication^*

• Bluetooth^® Class1 realizes long distance and stable connection
• Link between total station and rover-end data collector, both equipped with Bluetooth Class1, facilitates quick surveying only by sighting the object.

* Option

Advanced Angle Measurement System

• ES features advanced absolute encoders for long-term reliability in all work conditions. Dual-axis compensation ensures accurate leveling even on rough terrain.
• Motion clamp and tangent screw ensure stable angle measurement.
• ES-101 and ES-102 feature angle measuring accuracy of 1” equipped with groundbreaking technology for extremely reliable angle measurement.

The Longest Battery Life - 36 Hours!^*

• Just one battery last 36 hours. It runs one week in full charge and no longer requires extra batteries.

* As of February, 2013.

7 hours in 5 days for fine single measurement in 30 seconds

Rugged and User-friendly Design

• IP66 dustproof/waterproof performance
• Standard usage temperature range -20ºC to +60ºC. Low temperature models can be used in range -30° to +50°C.^*

* Low temperature models are available as options.

• USB Type A port for convenient added memory. Use of included USB accessory assures IP66 protection.

• Star key [★] instantly brings up functions.
• Control panel consists of 10-key pad with alphabet entry with LCD for easy viewing of graphics^*.

* Control panel location may vary depending on region or model.

• Trigger key lets you take a series of measurements without taking your eye off the telescope.
• Trigger key is ergonomically placed so that measurement can be taken at any time with just the push of a button.

• Green/Red Guide Light is built into the telescope as a standard feature, enhancing setting-out work efficiency in a range of 1.3 to 150m.
• Built-in laser plummet is equipped for quick instrument setting.
  5 brightness levels are ready for optimum visibility.^*

* Option.

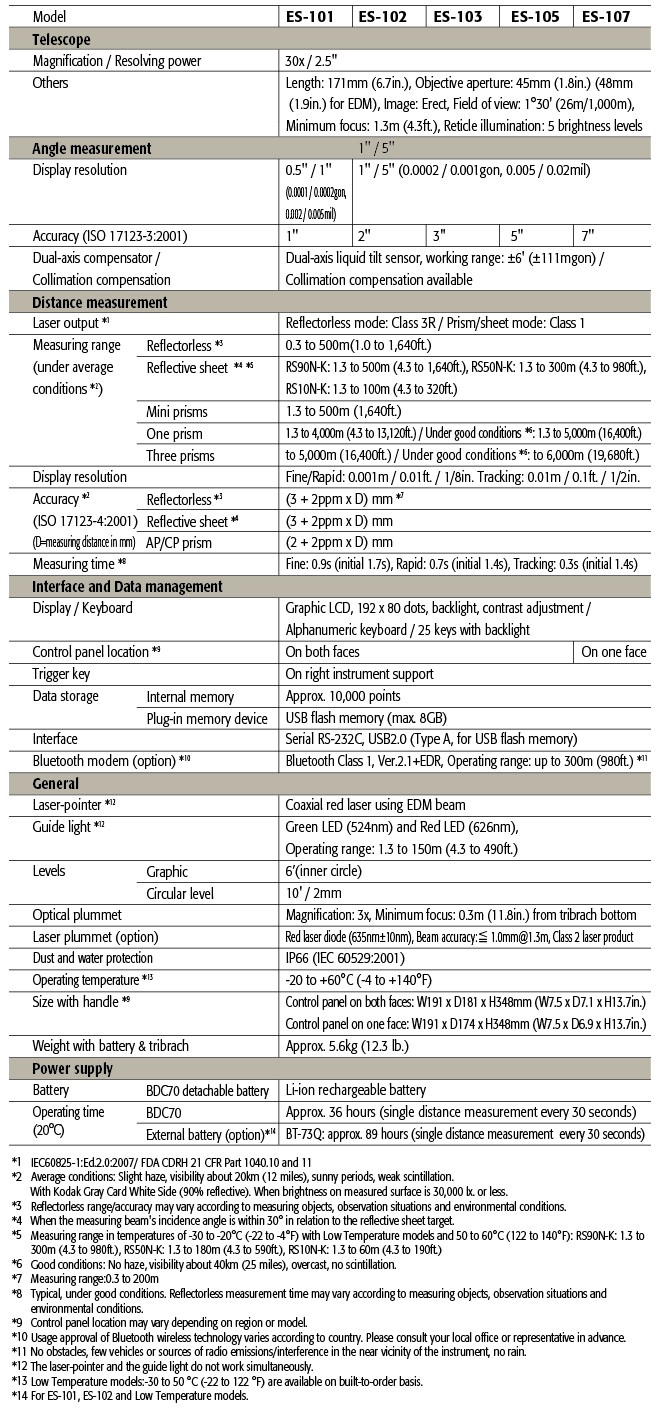

Specifications
