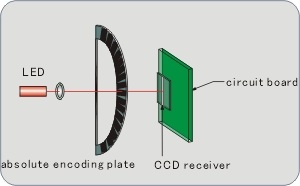

Absolute Encoding Disk

With absolute encoding disk, you can start your work directly as the instrument is powered on. Azimuth angle will be saved even if the power is off incidentally in the job.

Six-line large LCD

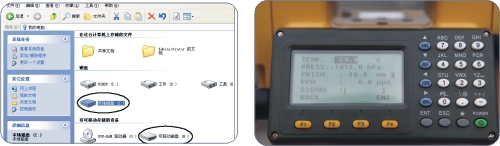

Convenient Management on Internal Memory.

Huge capacity of internal memory enables you to easily complement file system management, including adding, deleting, modifying and transferring data.

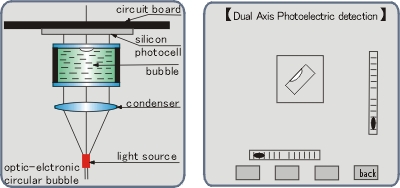

Dual Axis Compensation

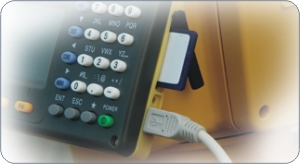

SD card Function and USB interface

SD card provides huge memory, fast speed of data transferring, incredibly flexibility and reliable safety. Saving various data of job into the SD card, you can easily read it just by inserting it into the SD port of your laptop.

USB interface is the international mainstream for PC communication, with it your job must be much easier.

Reflectorless Distance Measurement

Functioned by reflectorless distance measurement, range up to 350m which is applicable for long distance measurement with high accuracy on various  kinds of materials or colors such as wall, wire pole, wire, cliff, hill, earth, timber pile, etc. For those targets which are not easy or  even impossible to reach, reflectorless distance measurement can complete the measurement task easily.

Various Surveying Programs
Besides of ordinary surveying programs, such series of total station also has special surveying programs, such as remote height measurement, offset measurement, remote distance measurement, stake out, resection, area calculation, road design and stake-out, etc., which are sufficient to meet the needs of professional measurement and surveying measurement.
