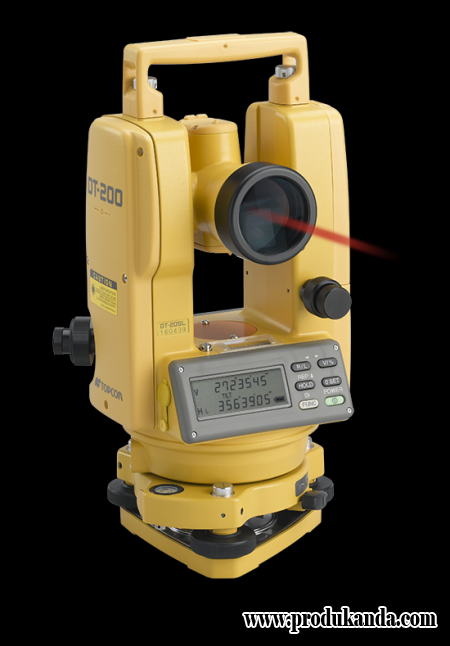

Deskripsi :
- Longer battery powering duration
Longer battery powering durations using alkaline batteries. Continuous angle measurement for 150 hours (DT-213). Laser continuous angle measurement for 45 hours. - Absolute encoder is used
Detection of 0° position is no longer needed. Stable, high-accuracy measurement. - Laser pointer
The laser pointer is injected in collimation direction by simply operating one switch. Workers can perform work without guidance by observation personnel. - Excellent waterproof structure
The theodolite body is guarded against a sudden torrential rain and dirt. The theodolite can be used reliably at work sites under severe conditions.
JIS C 0920 protection class IP66 (Dustproof and waterproof types)
|
Model |
DT-205L |
DT-207L |
DT-209L |
|
|
Telescope |
Length |
152mm |
152mm |
152mm |
|
Objective lens |
45mm |
45mm |
40mm |
|
|
Magnification |
30x |
30x |
26x |
|
|
Field of view |
1°30′ |
1°30′ |
1°30′ |
|
|
Resolving power |
2.5” |
2.5” |
3” |
|
|
Minimum focus |
1m |
1m |
1m |
|
|
Stadia ratio |
100 |
100 |
100 |
|
|
Stadia constant |
0 |
0 |
0 |
|
|
Sighting collimator |
Double |
Double |
Double |
|
|
Electronic Angle Measurement |
Method |
Absolute Reading |
Absolute Reading |
Absolute Reading |
|
Detecting |
Horizontal: 2 sides |
Horizontal: 2 sides |
Horizontal: 1 side |
|
|
Vertical: 1 side |
Vertical: 1 side |
Vertical: 1 side |
||
|
Miimum Reading |
1”/5” |
5”/10” |
10”/20” |
|
|
0.2mgon/ 1mgon |
1mgon/ 2mgon |
2mgon/ 5mgon |
||
|
Accuracy |
5” |
7” |
9” |
|
|
Diameter Circle |
71mm |
71mm |
71mm |
|
|
Laser Pointer |
Method |
Focusing |
Focusing |
Focusing |
|
Wave length/ Power |
633nm/ 0.6mW |
633nm/ 0.6mW |
633nm/ 0.6mW |
|
|
Laser Class |
Class 2 |
Class 2 |
Class 2 |
|
|
Display |
Unit |
2 sides |
2 sides |
1 side |
|
LCD 7segments |
LCD 7segments |
LCD 7segments |
||
|
Data Output |
Serial signal connector |
● |
- |
- |
|
Illumination |
Display |
● |
● |
● |
|
Reticle |
● |
● |
- |
|
|
Compensator |
Tilt sensor |
● |
- |
- |
|
Compensating range |
±3′ |
- |
- |
|
|
Optical Plumment Telescope |
Magnification |
3x |
3x |
3x |
|
Field of view |
3° |
3° |
3° |
|
|
Focusing |
0.5m to ∞ |
0.5m to ∞ |
0.5m to ∞ |
|
|
Level Sensitivity |
Plate level |
40”/2mm |
40”/2mm |
60”/2mm |
|
Circular level |
10”/2mm |
10”/2mm |
10”/2mm |
|
|
Water Protection |
Standard |
IP66 |
IP66 |
IP66 |
|
Power Supply |
Battery |
4AA batteries |
4AA batteries |
4AA batteries |
|
Operating time (Alk.) |
Theodlite only |
140h |
150h |
170h |
|
Lasor only |
80h |
80h |
80h |
|
|
Theodlite and Lasor |
45h |
45h |
45h |
|
|
Operating Temp. |
-20℃ to + 50℃ |
-20℃ to + 50℃ |
-20℃ to + 50℃ |
|
|
Weight |
4.2kg |
4.2kg |
3.6kg |
|
